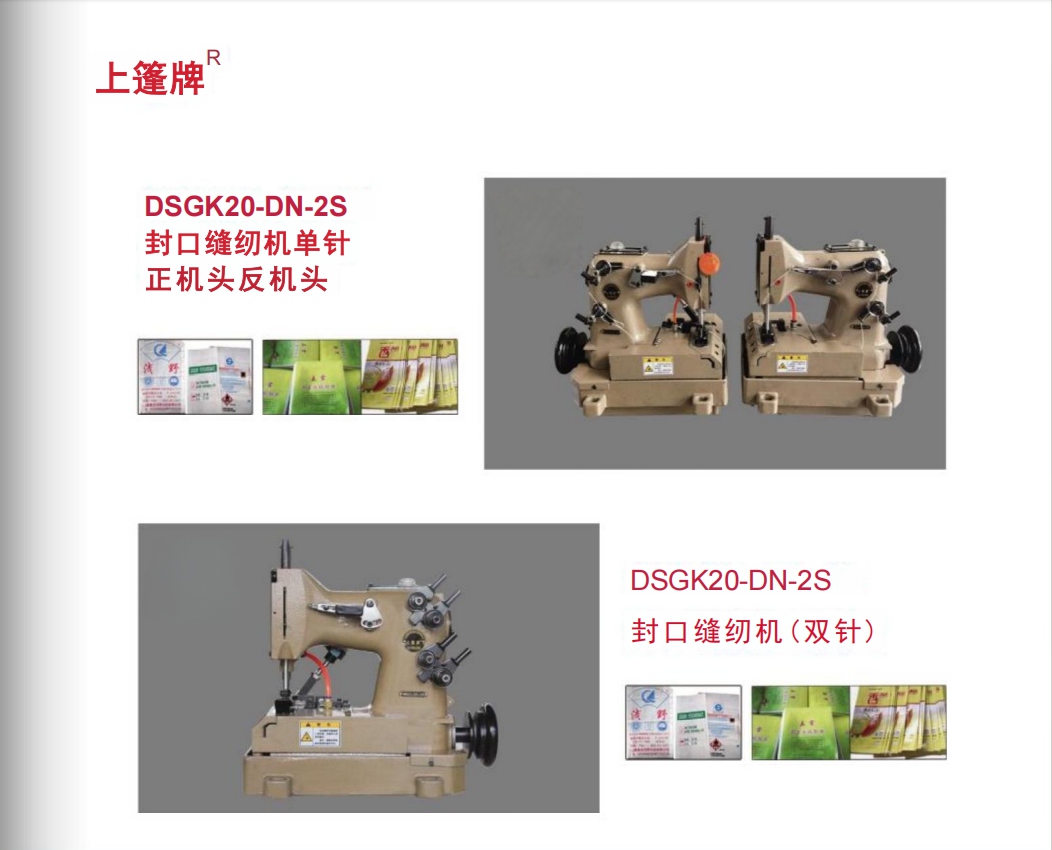

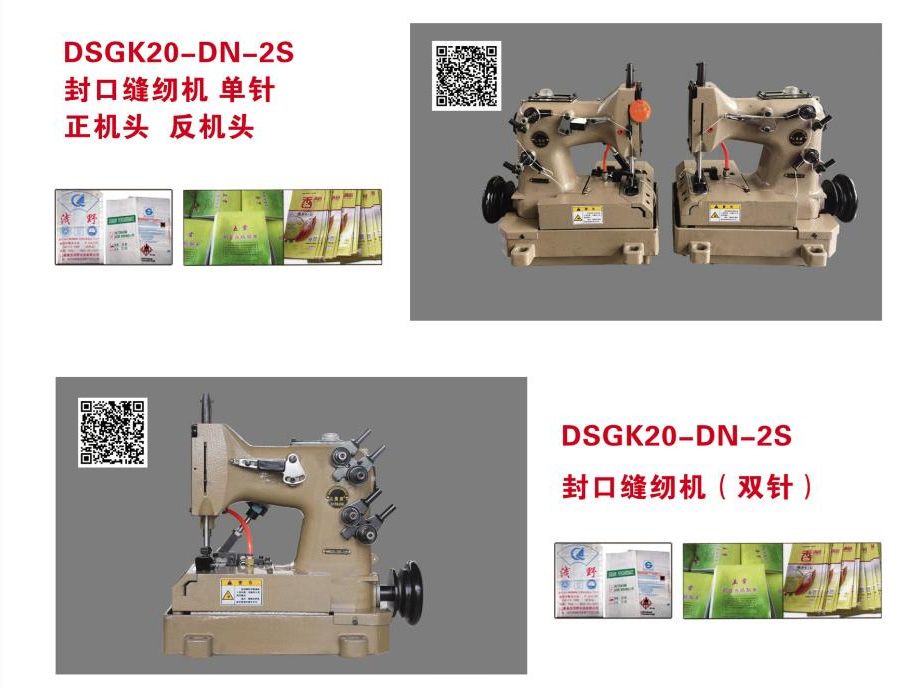

DSGK20-DN-2S

The GK20-DN-2S series sealing sewing machine is a newly developed bag-closing machine, designed based on the proven DN-2, DS-9, and GK8 models. Built for heavy-duty industrial use, it combines robust construction with user-friendly features to deliver reliable, high-quality stitching.

Key Advantages

Closed Automatic Lubrication System: The fully enclosed automatic lubrication system ensures consistent, splash-style oil supply to moving parts, keeping the machine running smoothly with low noise and minimal wear.

Strong Sewing Performance: It features a large needle bar stroke and powerful upper/lower synchronous feeding mechanism, enabling excellent thick-seam sewing capability, uniform stitch formation, and neat, consistent seam appearance.

Durable & Low-Maintenance Build: Critical components are precision-machined from high-quality carbon alloy structural steel, heat-treated for high hardness, gloss, and dimensional accuracy. Wear-resistant steel bushings on key shafts and connecting rods further enhance abrasion resistance, ensuring high-speed, quiet operation, long service life, and easy maintenance.

Applications

Ideal for sewing various woven bags in industries including paper bag manufacturing, cement plants, chemical factories, and other industrial packaging facilities.

Core Specifications (Model: DSGK20-DN-2S)

Maximum sewing speed: 2200 revolutions per minute

Maximum sewing thickness: 12mm

Maximum stitch length: 15mm

Stitch types: Single chain stitch, double chain stitch, and double-needle four-thread chain stitch (with 4mm left-right needle spacing and 8mm front-back needle spacing)

Needle model: DRx2. 230-300 / GK230-300

Recommended thread: Polyester thread, specification 21 count, 4-9 strands

Motor power: 0.37kW

Machine head dimensions: 55 × 37 × 50 cm

Machine head weight: 35kg

Lubrication method: Oil scraper plate splash lubrication
